L-Shaped Dormer Loft Conversions
Two dormers joined over the main and rear-addition roof — perfect for Victorian and Edwardian homes with an outrigger.
At a glance / 01
Victorian & Edwardian terraces
The roofline / 02
One dormer sits over the main roof and another over the rear addition; together they create the characteristic L-shaped plan.
Planning / 03
An L-shaped dormer can sometimes be permitted development, including where it joins the original roof to a side or rear extension, provided Class B conditions are met.
Find your fit
Is this the right conversion for your home?
Make the rear addition part of the plan. Best explored on homes with a rear outrigger, particularly many Victorian and Edwardian terraces. Both roof sections must be designed together.
An L-shaped dormer combines a rear dormer over the main roof with a second dormer above the rear outrigger, creating an L-shaped floorplan and huge additional space.
It's the go-to solution for period Victorian and Edwardian terraces across London and Essex where a rear addition already exists.
It may suit
- Victorian & Edwardian terraces
- Homes with a rear outrigger
- Anyone wanting a bedroom AND a large family bathroom in the loft

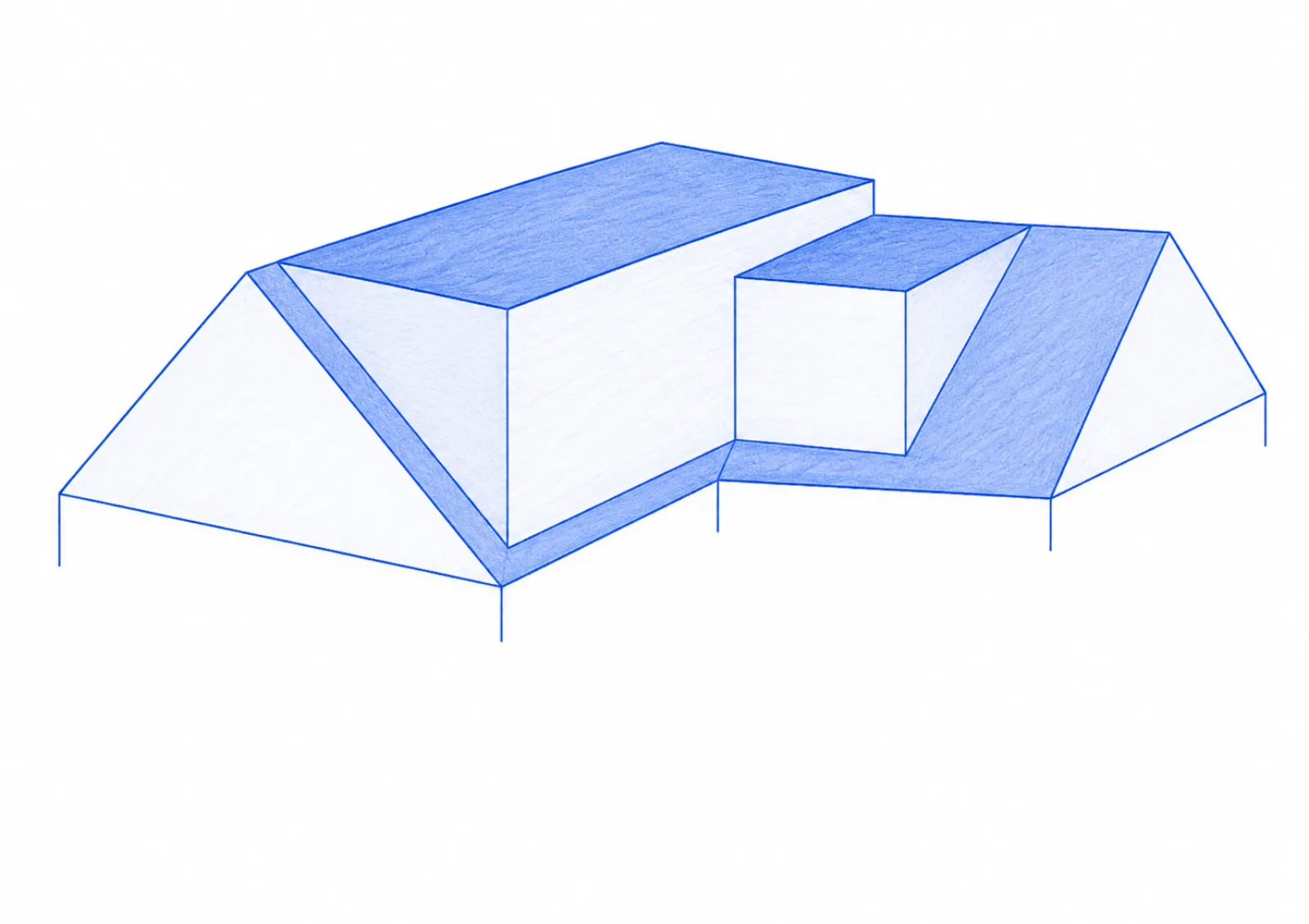

Roof form / illustrationRoof anatomy
What happens to the roofline?
One dormer sits over the main roof and another over the rear addition; together they create the characteristic L-shaped plan.
Every roof is different. We survey the existing structure before recommending a design.
The planning route
Will I need planning permission?
L-shaped dormer planning permission is not automatically required. On a house with a rear outrigger, the new roof can sometimes qualify as permitted development even where the enlargement joins the original roof to the roof of a rear or side extension.
The shape alone is not enough to decide. Both wings of the L-shaped dormer and any earlier roof additions must be considered against the Class B volume, height, position and appearance conditions. Period homes in conservation areas need particular care because Class B rights may not be available.
Class B / roof enlargement
The main checks, clearly set out.
For a house with roof-enlargement permitted development rights, the complete proposal must meet all relevant conditions:
Total additional roof space, including previous enlargements. These are limits, not automatic entitlements.
- 01
Additional roof space is generally limited to 40m³ for terraced houses or 50m³ for detached and semi-detached houses. Previous additions to the original roof count too, whoever built them.
- 02
The enlargement must not rise above the highest part of the existing roof or project beyond the plane of the existing roof slope on the principal elevation where it fronts a highway.
- 03
Exterior materials must be of a similar appearance to the existing dwellinghouse. This does not necessarily require the identical product: visible colour, design and overall finish should relate sympathetically to the house and roof.
- 04
The original eaves must normally be maintained or reinstated, with the nearest edge of the enlargement set back at least 0.2m from them so far as practicable. Relevant hip-to-gable work and enlargements joining the original roof to a side or rear extension have specific exceptions to this eaves rule.
- 05
The enlargement must not extend beyond the outside face of an original external wall, except where it joins the original roof to the roof of a side or rear extension. Minor roof details are treated separately.
- 06
Side-facing windows must be obscure glazed and non-opening unless their opening parts are more than 1.7m above the room floor. Verandas, projecting balconies and raised platforms are not permitted under Class B; a Juliet balcony without a platform can normally qualify if the other rules are met.
These are householder rights for houses, not an automatic route for flats or maisonettes. Class B roof-enlargement rights do not apply on designated land such as conservation areas, and rights can also be removed or restricted by an Article 4 direction or a condition on an earlier permission. Listed buildings have additional controls.
Class B provides specific exceptions to the usual eaves setback and no-overhang rules for an enlargement joining the original roof to the roof of a side or rear extension. Those exceptions do not waive the other conditions.
Finishes to both parts of the dormer should be similar in appearance to the existing dwellinghouse; a sympathetic visual match need not mean an identical material.
Do I still need an application?
Even when full planning permission is not needed, we normally recommend applying for a Lawful Development Certificate (LDC) where appropriate. It formally confirms that the proposed work is lawful under permitted development. It is not planning permission and is not legally mandatory simply because work is PD, but it provides useful evidence for your records and a future sale.
We assess your property and loft design, check the relevant permitted development or planning route, prepare drawings and handle the appropriate council submission as part of our design and planning process. No approval can be guaranteed.
Planning and Building Regulations are separate. For more detail, read our loft conversion planning guide or the GOV.UK householder technical guidance. Rules here describe the general position for houses in England; the exact property and proposal must be checked.
Design decisions
The details make the difference.
The right materials, glazing and internal layout should feel like they belong to the home. Options are assessed against the design and any applicable planning conditions.
- 01Coherent finishes across both dormer sections
- 02Rooflight positions that make the most of the front slope
- 03Glazing and eaves storage tailored to the shape of each wing
Depending on the design, we can also discuss double bedroom + bathroom layouts, freestanding baths, walk-in showers, bespoke fitted storage.

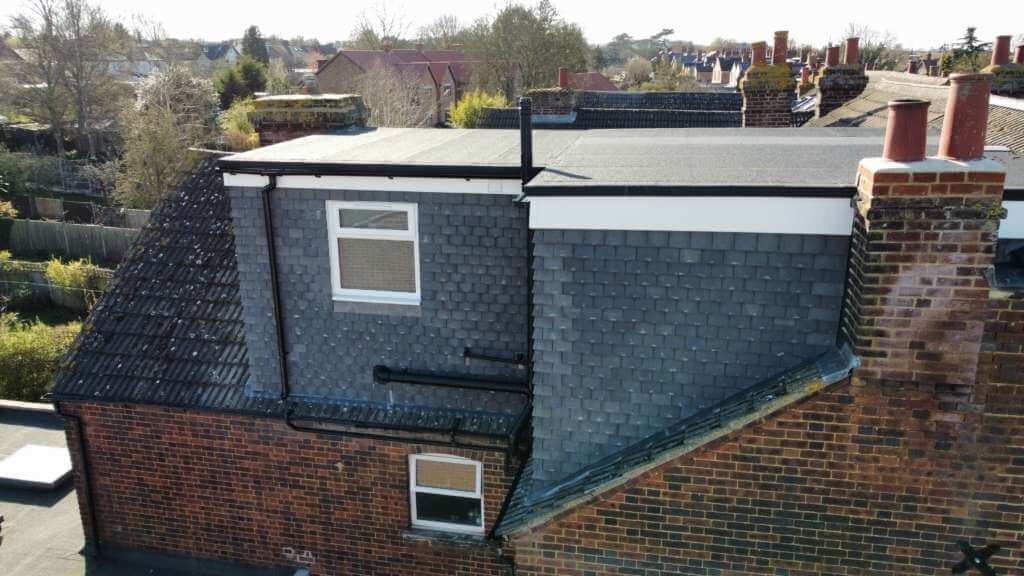

From our Hitchin project
Inside the roof
What could the space become?
The second wing can separate a bathroom, dressing space or work area from the main bedroom; the exact arrangement follows the existing house.
A measured survey and design consultation will establish what works in your home.
From first visit to finish
A considered route to a finished loft.
- 01 / 06
Assess
Survey the roof and establish whether l-shaped dormer loft conversions suit the house.
- 02 / 06
Design
Develop the layout around one dormer sits over the main roof and another over the rear addition; together they create the characteristic l-shaped plan.
- 03 / 06
Planning / LDC
Check the permitted-development route and consider an LDC where appropriate.
- 04 / 06
Building Regulations
Coordinate structural design, stairs and technical approvals.
- 05 / 06
Build
Turn the agreed drawings into the finished space.
- 06 / 06
Completion
Finish the details and hand over the relevant certificates.
Good questions
L-Shaped Dormer Loft Conversions, explained.
Is an L-shaped dormer more expensive?
It costs more than a simple rear dormer because of the additional structural work — but delivers significantly more usable floor area.
Can an L-shaped dormer be permitted development?
Yes, sometimes. Joining the original roof to a rear or side extension does not automatically rule out Class B. The combined enlargement still needs to meet the applicable limits and conditions, and the house must retain PD rights.
